| ※For details of dimensions, please check the approval request diagram (PDF)
below. |
|
|
|
 |
Adobe Reader of Adobe Systems Incorporated is necessary to see the approval
request drawing (PDF format). |
|
|

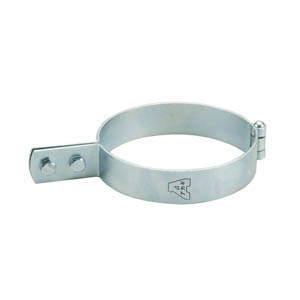

| ■Hinged vertical band for fireproof double-layer pipe (FDP) |
| |
| Part number A10336 Vertical band for TN pipe |
Units (㎜) |
| Size code |
Size
|
Applicable pipe
outer diameter |
ｔ |
Ｃ |
Tightening bolt
Dia. × Length |
D |
P |
F |
0018
0022
0037
0041
0056 |
40
50
65
75
100 |
63
75 to 76
91 to 92
104 to 105
131 to 132 |
2.3
2.3
2.3
2.3
2.3 |
25
25
25
25
25 |
Ｍ 6×25
Ｍ 6×25
Ｍ 6×25
Ｍ 6×25
Ｍ 6×25 |
45
45
45
45
45 |
20
20
20
20
20 |
6
6
6
6
6 |
0075
0080 |
125
150 |
155～156
183 |
3.2
3.2 |
32
32 |
Ｍ10×30
Ｍ10×30 |
60
60 |
27
27 |
8
8 |
|
 |
|
|
