| ■Hinged vertical band for vinyl SU pipe |
| |

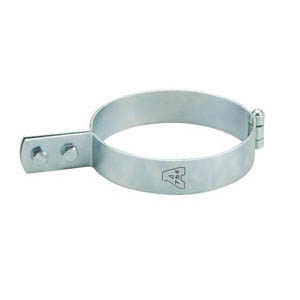

| Part number A10332 Vertical band for vinyl SU pipe |
Units (㎜) |
| Size code |
Size |
Applicable pipe
outer diameter |
ｔ |
Ｃ |
Tightening bolt
Dia. × Length |
D |
P |
F |
0019
0023
0038
0042
0057 |
50
65
75
100
125 |
54
68
80
106
134 |
2.3
2.3
2.3
2.3
3.2 |
25
25
25
25
32 |
Ｍ 6×20
Ｍ 6×20
Ｍ 6×20
Ｍ 6×20
Ｍ10×30 |
45
45
45
45
55 |
20
20
20
20
27 |
6
6
6
6
8 |
| 0061 |
150 |
165 |
3.2 |
32 |
Ｍ10×30 |
55 |
27 |
8 |
|
 |
|
|
